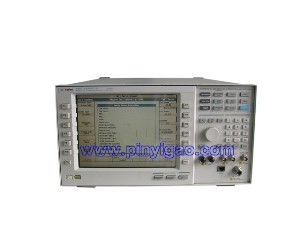

E5515C 移动通讯测试仪

Agilent 8960 Series 10 无线通信测试仪能为移动设备制造商带来直接的竞争优势。 为大规模的自动生产制造测试所开发的 8960 Series 10 测试仪，为客户提供了 速度, 精度, 重复能力,多制式能力, 易于编程, 以及制式灵活的体系结构。 对移动设备制造商来说，这意味着更低的测试成本和更高的产出，并且也有助于满足客户对电话的当前和未来要求。
当前对8960 Series 10 的增强把仪器的应用领域扩展到无线终端的设计和开发之中。除了扩展的参数测试外，您还可利用强大的协议记录特性，用新的“实验室应用软件” 对您的无线设计进行验证和纠错。

可把 8960 Series 10 配置为用于 W-CDMA, cdma2000, IS-95, GSM, GPRS, TIA/EIA-136 和 AMPS移动电话测试。

Agilent E5515C

8960 Wireless Communications Test Set
Cellular mobile station (handset) manufacturing test set.
The E5515C is a multiple format manufacturing test set designed for high volume production testing of cellular and PCS telephone handsets. Depending on installed test application, the E5515C can test AMPS, GSM, TDMA, cdma2000, WCDMA, HSDPA, UMTS, EGPRS and GPRS handsets.
Option 4 (Digital bus) enables fading in cdma2000, 1xEV-DO, WCDMA,
GSM/GPRS/EGPRS lab applications and lab application suites.

Class 10 phones or above require 4.8HW option V48

Option V50 (5.0 hardware) is standard with units beginning with
serial number GB46040101 or above.
5.0HW is also available as an upgrde option E5515CU/285.

Option V48 (4.8 hardware) is standard with units beginning with
serial number GB45070001 or above.
4.8HW is also available as an upgrade option E5515CU/185.

Option H03 (EGPRS) capable hardware

Test Applications are described as:
E1961A AMPS/136 test application
E1962B cdma2000 test application
E1962B1 used for E1962B-401 cdma2000 Rel A new control channels
E1962B2 used for E1962B-402 cdma2000 Advanced AMPS
E1962B3 used for E1962B-403 cdma2000 Authentication
E1963A W-CDMA test application
E1963A1 used for E1963A-401 W-CDMA video phone test
E1963A2 used for E1963A-403 HSDPA test mode
E1966A 1xEV-DO test application
E1968A1 used for E1968A-101 GSM test application
E1968A2 used for E1968A-102 GPRS test application
E1968A3 used for E1968A-201 GSM/GPRS test application
E1968A4 used for E1968A-103 EGPRS test application
E1968A5 used for E1968A-202 GSM/GPRS/EGPRS test application
E1968A6 used for E1968A-410 EGPRS phase and amplitude vs time
E1991B Test application suite
E1993A UMTS test application suite
E1996A CDMA/1xEV-DO test application suite

Lab Applications are described as:
E6701D GSM/GPRS Lab application
E6702B cdma2000 Lab application
E6703C WCDMA Lab application
E6704A EGPRS Lab application requires E6701C or E6701D
E6706A 1xEV-DO requires E1966A test application
E6716A cdma2000/1xEV-DO Lab application suite
E6717A UMTS Lab application suite
E6719C Lab application suite
E6785C Lab application fast switching

Fast Switching application described as:
E1987A E1961A AMPS/136, E1962B cdma2000/IS-95/AMPS, E1963A W-CDMA,
E1968A GSM/GPRS/EGPRS, E1966A-1xEV-DO
E6785C GSM/GPRS/W-CDMA

Option dependencies:
Test applications:
E1961A No option required
E1962B Requires option 3
E1962B1 Requires option 3, E1962B, and V48 or above
E1962B2 Requires option 3, E1962B, and V48 or above
E1962B3 Requires option 3, E1962B, and V48 or above
E1963A Requires option 3
E1963A1 Requires option 3, E1963A, and V48 or above
E1963A2 Requires option 3, E1963A, V50
E1966A Requires option 3
E1968A1 Requires option 2
E1968A2 Requires option 2
E1968A3 Requires option 2
E1968A4 Requires option 2 and H03
E1968A5 Requires option 2 and H03
E1968A6 Requires option 2, H03, and V48 or above
E1987A Requires option H03 and V48 or above
E1991B Requires option 2, 3, H03 and V48 or above
E1993A Requires option 2, 3, H03 and V48 or above
E1996A Requires option 3, and V48 or above
Lab applications: (option 4 required to do fading)
E6701D Requires option 2
E6702B Requires option 3, recommened V48 for class 10 phones and up
E6703C Requires option 3, recommened V48 for class 10 phones and up
E6704A Requires option 2, 3 and H03
E6706A Requires option 3, V48 or above
E6716A Requires option 3, and V48 or above
E6717A Requires option 2,3,H03,(V48 for class 10 phones and up).
E6719C Requires option 2, 3, H03, and V48 or above

Agilent defined bundle suites:

E1991A test application suite includes:
E1960A GSM test application
E1961A AMPS/136 test application
E1962B cdma2000 test application
E1963A W-CDMA test application
E1964A GPRS test application
E1966A 1xEV-DO test application
E1985A Add new fast switching TAs

E1991B test application suite includes:
E1961A AMPS/136 test application
E1962B cdma2000 test application
E1963A W-CDMA test application
E1966A 1xEV-DO test application
E1968A5 GSM/GPRS/EGPRS test application
E1987A Fast switching test application

E1993A UMTS test application suite includes (requires revision 4.8HW):
E1963A W-CDMA mobile test application
E1968A5 GSM, GPRS, EGPRS test applications
E1987A Fast switching test application

E1996A CDMA/1xEV-DO test application suite
E1962B cdma2000 test application
E1966A 1xEV-DO test application
E1987A Fast switching test application

E6716A cdma2000/1xEV-DO Lab application suite includes:
E6702B cdma2000 lab application
E6706A 1xEV-DO lab application

E6717A UMTS Lab application suite includes:
E6701D GSM/GPRS lab application
E6703C W-CDMA lab application
E6704A EGPRS lab application
E6785C GSM/GPRS, W-CDMA lab application fast switching

E6719C Lab application suite includes:
E6701D GSM/GPRS lab application
E6702B cdma2000 lab application
E6703C W-CDMA lab application
E6704A EGPRS lab application
E6706A 1xEV-DO lab application
E6785C GSM/GPRS, W-CDMA lab application fast switching
