  • Moxa为法国地铁构建了车载的IP通讯网络
  • 发布时间:2024/5/15 14:15:58   修改时间:2012/9/5 15:11:43 浏览次数:2202
  •

          项目描述
      巴黎郊区的某两条地铁线路需要翻新和升级。该项目采用了全球的地面运输技术,需要满足每天至少14,000次地铁运行班次。供应商意识到,在车辆上建立一个可靠的车载IP网络是这个项目的关键,因而采用经过相关认证的车载交换机来构建这个骨干网络。
      系统需求
      ●工业级设计,适用于恶劣环境
      ●EN 50155认证,确保可在车辆上可靠运行,抗振/抗冲击
      ●通过相关认证,可适用与有火或烟雾的环境
      ●高度可靠的工业以太网技术
      ●全球知名厂商,有大量的相关业绩和经验
      Moxa解决方案


      自2010年起,巴黎郊区的某两条地铁线路将采用车载IP网络,可以处理不同应用的大量数据,包括语音系统、乘客信息系统、IP视频等,还包括无线解决方案。

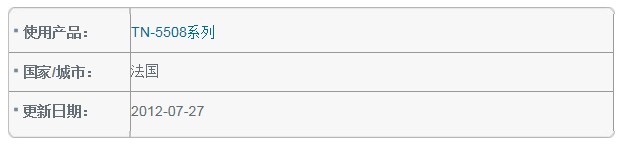

      一列火车由火车头和5节车厢组成。在车头安装了3台TN-5508 8口网管型车载交换机(EN 50155),其他车厢每节车厢安装两台车载交换机,这些交换机采用Moxa Turbo Ring协议组建了一个可在20ms内快速自愈的冗余环网,Turbo Ring技术可最大限度减少网络故障而造成的系统宕机时间。
      Moxa TN-5508车载交换机可支持百兆带宽,可将多种数据应用接入同一个骨干网络。对乘客信息系统和视频监控系统而言,交换机还可提供安全保障,来确保相关系统的安全可靠。
      Why Moxa
      ●支持Turbo Ring, Turbo Chain (自愈时间 < 20 ms) 或RSTP/STP冗余网络协议
      ●隔离型冗余电源输入,支持通用12/24/36/48 VDC,72/96/110 VDC或110/220 VDC/VAC
      ●兼容EN 50155和EN 50121-4
      ●支持-40 ~ 75℃宽温(-T型号)



    如需了解更多,欢迎登陆:http://www.moxa.com.cn/application/An_On-Board_Train_IP_Network_for_Two_French_Rail_Lines.htm
