Manufacturer: AMPHENOL

Order Code: 617106

Manufacturer Part No: MS3106A-10SL3S(MS3106A10SL-3S)

RoHS : No

Description

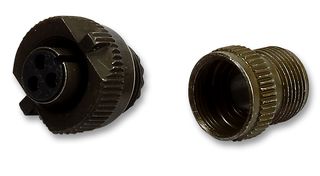

• SOCKET, FREE, 3WAY
• Connector type:Circular
• Gender:Plug
• Ways, No. of:3
• Termination method:Solder Bucket
• Material, contact:Copper Alloy
• Plating, contact:Silver
• Series:MS3106
• Connector shell size:10SL
• Contact style:Socket
• Mounting type:Cable
• Connector insert type:10SL-3
• Approval Bodies:MIL-C-5015
• Colour:Olive
• Current rating:13A
• Diameter, cable max:1.4mm
• Diameter, cable min:0.8mm
• IP rating:IP66
• Length:38.18mm
• Material:Aluminium alloy
• Material, insulator:Neoprene
• Poles, No. of:3
• Temp, op. max:125°C
• Temp, op. min:-55°C
• Voltage rating, AC:700V
• Wire size, AWG max:22AWG
• Wire size, AWG min:16AWG
• Diameter, coupling:24.02mm
• Dielectric strength, VAC:2800V
• Voltage rating, DC:700V
